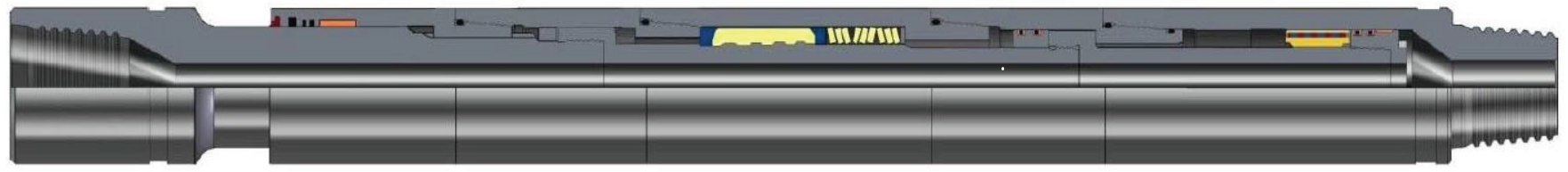

Type JYQ Hydro-Mechanical Drilling Jar
Description
Model JYQ Drilling Jar can integrate the mechanical and hydraulic. The up jarring can be acted by hydraulic as to realize the stepless control of up jarring tonnage. The lock mechanism designed specially can avoid the mistaken jarring of up. The down jarring can be acted mechanically. It can adopt the new special material for higher property and safety. It can be used for directional hole, deep hole and so on.
Specifications
Model | O.D. mm(in) | I.D. mm(in) | Connection API | Max. Upward Jarring force kN(lb) | Max. Downward Jarring force kN(lb) | Max. Working Load kN(lb) | Tensie Yield Strength kN(lb) | Max. Working Torque kN.m (ft.lbs) | Torsional Yield Torque kN.m (ft.lbs) | Length mm(in) |
JYQ121Ⅱ | 121 （4-3/4） | 57.2 （2-1/4） | NC38 | 350 (78000) | 250 (56000) | 1100 (250000) | 1950 (440000) | 15 (11000) | 27 (20000) | 4500 (117.17) |
JYQ159 | 159 （6-1/4） | 57.2 （2-1/4） | NC46 | 700 (156000) | 350 (78000) | 1600 (360000) | 2700 (600000) | 25 (18000) | 65 (48000) | 5007 (197.13) |
JYQ165 | 165 （6-1/2） | 70 （2-3/4） | NC50 | 700 (156000) | 350 (78000) | 2000 (450000) | 3750 (840000) | 30 (22000) | 75 (55000) | 5256 (206.93) |
JYQ178 | 178 （7） | 70 （2-3/4） | NC50 | 800 (180000) | 400 (90000) | 2400 (540000) | 4650 (1000000) | 35 (26000) | 80 (59000) | 5256 (206.93) |
JYQ197 | 197 （7-3/4） | 76.2 （3） | 6-5/8REG | 1000 (225000) | 500 (110000) | 2600 (580000) | 5100 (1150000) | 40 (29000) | 100 (74000) | 5095 (200.60) |
JYQ203 | 203 （8） | 76.2 （3） | 6-5/8REG | 1000 (225000) | 500 (110000) | 2800 (630000) | 6650 (1500000) | 45 (33200) | 145 (100000) | 5095 (200.60) |
JYQ241 | 241 （9-1/2） | 76.2 （3） | 7-5/8REG | 1400 (315000) | 650 (150000) | 3500 (780000) | 9850 (2200000) | 75 (55000) | 180 (130000) | 5300 (208.60) |
