Type ZSJ&ZXJ Hydro-Mechanical Drilling Jar
Description

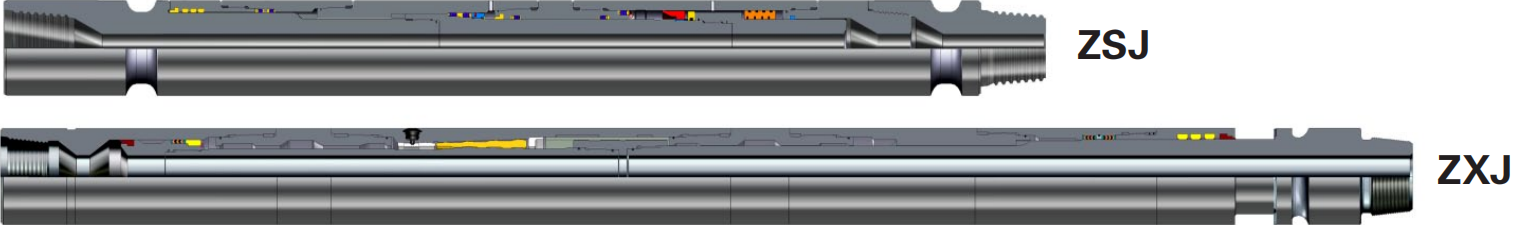

Model ZS(X)J Drilling Jar adopts split structure to realize up-down jarring operation independently. The Top Jar should be acted by hydraulic as to realize the stepless tonnage control；the Down Jar should be acted by mechanical for reliable jarring; It should be used for directional hole, complex hole and inclined hole during the drilling operation.
Specifications
Model | O.D. mm(in) | I.D. mm(in) | Connection API | Max. Tensile Load kN(lb) | Tensile Yield Strength kN(lb) | Max. Working Torque kN.m (ft.lbs) | Tensional Yield Strength kN.m (ft.lbs) | Max. Jarring load of Up kN(lbt) | Max. Stroke of Down mm(in) | Overall length of Upmm(in) |
ZSJ36 | 95 (3-3/4) | 28 (1.1) | 2 7/8REG | 600 (134800) | 1000 (224800) | 5 (3686) | 10 (7373) | 200 (44960) | 254 (10) | 4162 (163.8) |
ZXJ36 | 100 (22480) | 178 (7) | 3275 (128.9) | |||||||
ZSJ46 | 121 (4-3/4) | 51 (2) | NC38 | 1300 (292200) | 2000 (449600) | 20 (14746) | 30 (22119) | 350 (78680) | 305 (12) | 6093 (240.0) |
ZXJ46 | 250 (56200) | 182 (7.1) | 5125 (201.77) | |||||||
ZSJ56 | 146 (5-3/4) | 57 (2.3) | 4 1/2FH | 1800 (405000) | 2500 (562000) | 26 (19170) | 50 (36860) | 500 (112400) | 330 (13) | 5738 (225.9) |
ZXJ56 | 300 (67440) | 182 (7.1) | 5000 (196.8) | |||||||
ZSJ 62Ⅱ | 159 (6-1/4) | 57 (2.3) | NC46 | 2100 (472000) | 2700 (60700) | 30 (22119) | 65 (48000) | 700 (157000) | 346 (13.6) | 6394 (251.7) |
ZXJ 62Ⅱ | 350 (78680) | 182 (7.1) | 5371 (211.5) | |||||||
ZSJ64 | 165 (6-1/2) | 70 (2.8) | NC50 | 2100 (472000) | 3750 (843000) | 35 (25805) | 75 (55000) | 700 (157000) | 344 (13.5) | 6397 (251.7) |
ZXJ64 | 350 (78680) | 178 (7) | 5371 (211.5) | |||||||
ZSJ70 | 178 (7) | 70 (2.8) | NC50 | 2400 (539000) | 4650 (1000000) | 37 (27280) | 80 (59000) | 800 (179800) | 346 (13.6) | 6354 (250) |
ZXJ70 | 400 (89920) | 182 (7.1) | 5457 (214.8) | |||||||
ZSJ76 | 197 (7-3/4) | 71.4 (2.8) | 6 5/8REG | 3000 (719000) | 5100 (1146000) | 40 (29500) | 85 (63000) | 1000 (224800) | 370 (14.5) | 6295 (247.8) |
ZXJ76 | 450 (101100) | 181 (7.1) | 5245 (206.5) | |||||||
ZSJ80 | 203 (8) | 71.4 (2.8) | 6 5/8REG | 2800 (630000) | 6650 (1500000) | 45 (33000) | 90 (66000) | 1000 (224800) | 370 (14.5) | 6222 (245) |
ZXJ80 | 450 (101100) | 181 (7.1) | 5243 (206.4) |
